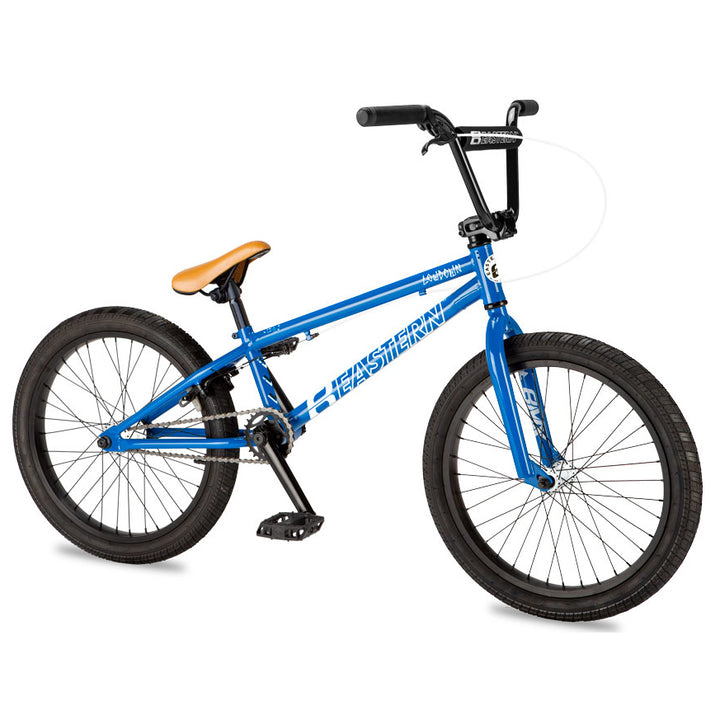

Eastern Lowdown BMX Bike

FRAME Hi Tensile Steel Lowdown
Top Tube Size: 20"
BB: AM
Headtube: Aheadset
Chainstay Length: 13.38"
Clamp: Integrated with Frame

BARS Hi-Ten 8.0"
Upsweep/Backsweep 12⁰/1⁰

FORK Lowdown - Hi-Tensile Steel, Tapered legs, 3/8" dropouts
Fork Rake: 28mm

HEADSET Aheadset

STEM Forged Alloy Front Load Stem

GRIP Eastern Riblet Grips

CRANK 3-Piece, Tubular Heat-Treated Chromoly, Bolt for Sprocket, Pinch Bolt with 8-Splined Spindle, 165mm 28.6mm Round Arm

BOTTOM BRACKET American Ball Bearing

CHAINWHEEL Eastern Phorcys, Cold Hard Steel, 25T

CHAIN KMC Z410 1/2 x 1/8

PEDAL Eastern Atom Plastic Pedal with 9/16 Chromoly Axle

FRONT BRAKE N/A

FRONT LEVER N/A

REAR BRAKE U-Brake, Forged Alloy

REAR LEVER Forged Alloy Lever

BRAKE CABLE [S] LINEAR

SADDLE Padded Seat with Railed Supports

POST Steel 200mm

FRONT HUB Sealed Bearings, Forged Alloy Shell, Drilled for 36 Spokes, 3/8" Chromoly Axle

REAR HUB Sealed Bearings, Forged Alloy Shell Drilled for 36 Spokes, 14mm Chromoly Axle 9 Tooth Driver

FREEWHEEL 9 Tooth Driver with Hub

FRONT RIM Alloy, Single Wall, Drilled for 36 Spokes (20")

REAR RIM Alloy, Single Wall, Drilled for 36 Spokes (20")

SPOKES 14 Gauge with Brass Nipples

FRONT TIRE 20 x 2.25

REAR TIRE 20 x 2.25

PEG none
