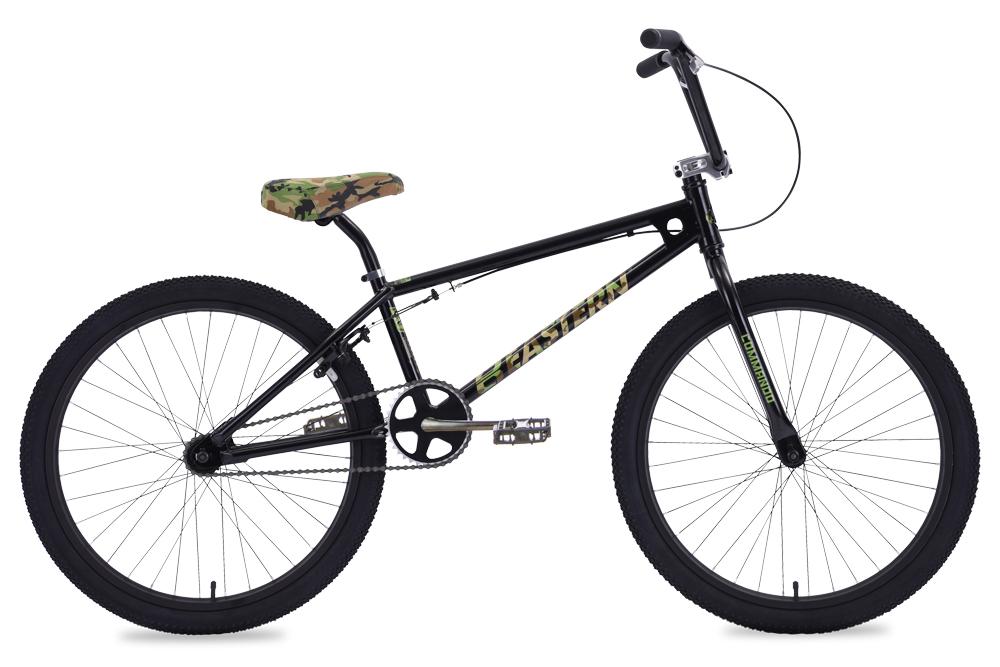

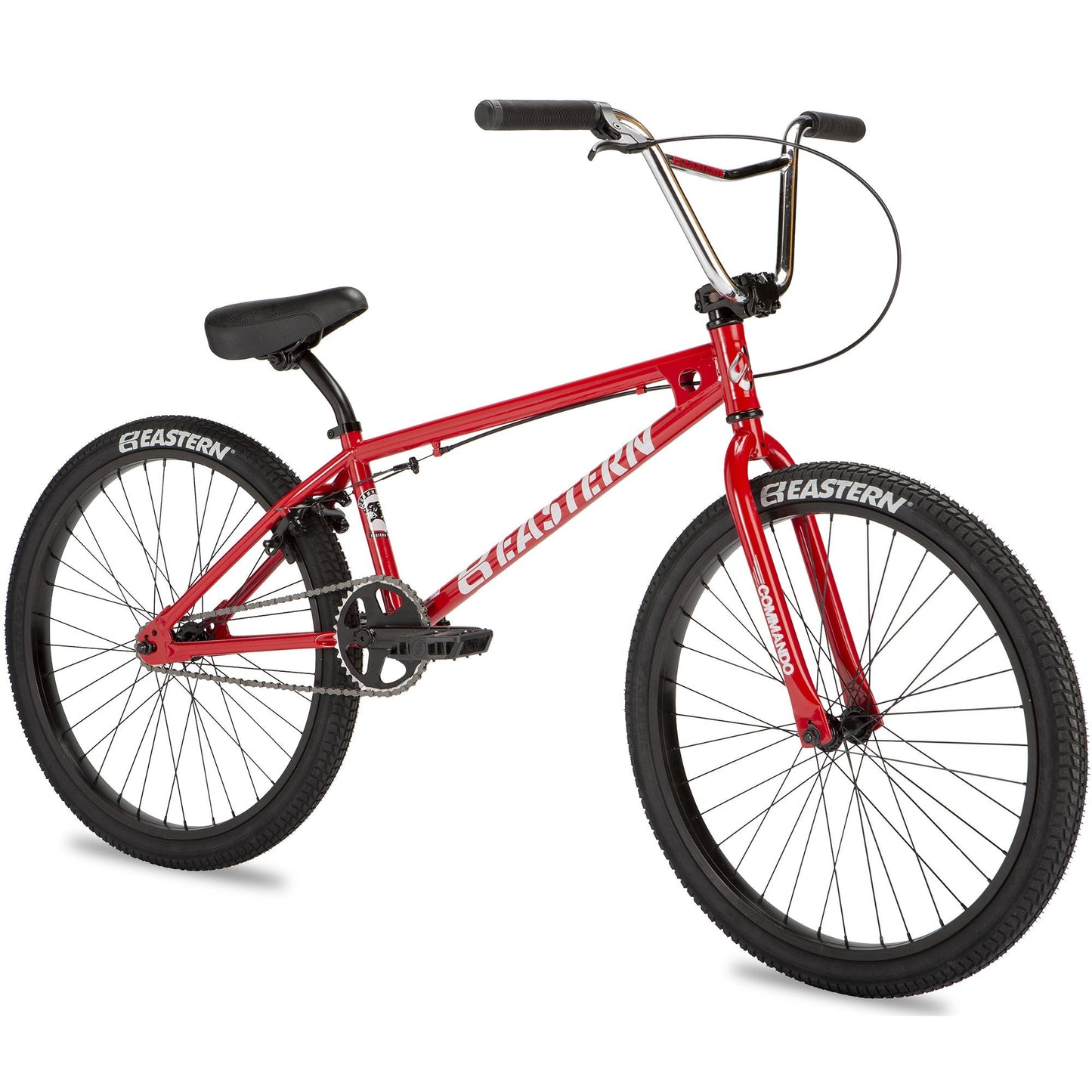

Eastern Bikes Commando 24" BMX Bike

• Chromoly Frame and Fork
• 3-Piece, Tubular Heat-Treated Chromoly Cranks

• Hi-Tensile Steel Frame and Fork
• Forged 1-Piece, Heat-Treated Chromoly Cranks

Hi-Tensile Steel, AM BB, Aheadset: Limited has Full Chromoly Frame
Top Tube Size: 22″(24") - 20.5″(20") - 16.3″(16")
BB:AM
Headtube: Aheadset
Chainstay Length: 15.4″(24") - 14.75″(20") - 12″(16")
Clamp: Alloy Bolt Clamp

Commando V Bar, Hi-Tensile Steel
Upsweep/Backsweep 11⁰/3⁰ (24") - 15⁰/1⁰ (20") - 11⁰/1⁰ (16")

Commando V Bar, Hi-Tensile Steel
Fork Rake: 32mm

HEADSET Aheadset

STEM Forged Alloy Front Load Stem

GRIP Eastern Riblet Grips

CRANK
3-Piece, Heat-Treated Chromoly, 175mm (24" Limited)
Forged 1-Piece, Heat-Treated Chromoly, 175mm (24")
170mm (20")
140mm (16")Arm Length

BOTTOM BRACKET American Ball Bearing: Limited Edition alloy cups with sealed bearings

CHAINWHEEL Eastern Maxum, Alloy, 36T

CHAIN KMC Z410 1/2 x 1/8

PEDAL Eastern Atom Plastic Pedal with 9/16" Axle

FRONT BRAKE N/A

FRONT LEVER N/A

REAR BRAKE U-Brake, Forged Alloy, Wide Body, Clear Brake Pads

REAR LEVER Forged Alloy Lever

BRAKE CABLE [S] LINEAR

SADDLE Padded Seat with Railed Supports

POST Steel 25.4 x 350mm

FRONT HUB Ball Bearing, Steel Shell, Drilled for 36 Spokes(24" 20") - 28 Spokes(16"), 3/8" Axle

REAR HUB Sealed Bearings, Forged Alloy Shell Drilled for 36 Spokes, 3/8" Chromoly Axle with 16 Tooth Freewheel Cog

FREEWHEEL 16 Tooth Freewheel

FRONT RIM Alloy, Single Wall, Drilled for 36 Spokes(24" 20") - 28 Spokes(16")

REAR RIM Alloy, Single Wall, Drilled for 36 Spokes(24" 20") - 28 Spokes(16")

SPOKES 14 Gauge with Brass Nipples

FRONT TIRE 24×1.95 (24") - 20×2.3 (20") - 16" (16")

REAR TIRE 24×1.95 (24") - 20×2.3 (20") - 16" (16")

PEG none
