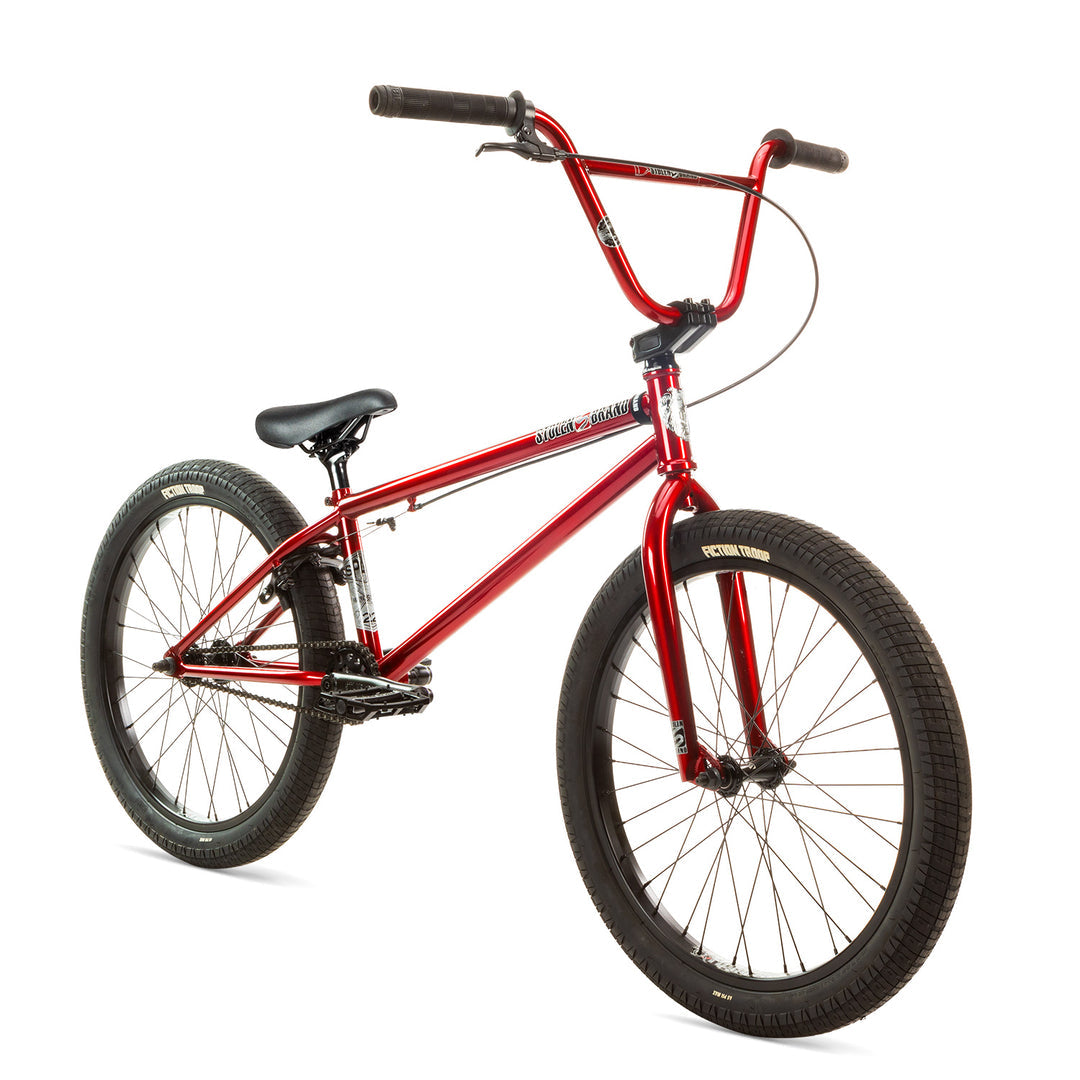

2022 Stolen Spade BMX Bike
2022 Stolen Spade BMX Bike
DETAILED SPECIFICATIONS
Frame: 100% 4130 ChroMoly frame w/ "S-Bend" chainstays for bigger tires, integrated headtube, mid bb shell
Fork: 100% 4130 ChroMoly w/ tapered legs, notched dropouts & one-piece steerer w/ Compressor top-cap
Bars: 8.75” TallBoy, 2-Piece ChroMoly
Grips: Stolen Team Flanged, 165mm w/ Stolen Vortex rubber barends
Stem: Fiction Spartan top-load, 52mm reach
Headset: Fiction Savage Sealed Integrated
Brake Lever: APSE Alloy w/ hinged clamp
Brakes: APSE U25 Alloy U-brake
Cranks: Tubular 4130 ChroMoly Arms, 48 Spline ChroMoly Spindle, 175mm
Sprocket: Stolen 6061 Alloy, 25T
Bottom Bracket: Sealed MID 19mm
Pedals: Stolen Throttle Alloy w/ ChroMoly Spindles
Chain: Z-410, Black
Front Hub: Stolen Rampage fully sealed, 3/8″ ChroMoly axle
Rear Hub: Rampage 6061 Alloy fully-sealed cassette w/ 14mm ChroMoly axle
Driver: 9t sealed, one-piece ChroMoly
Front Rim: Stolen Rampage 36H (double-wall)
Rear Rim: Stolen Rampage 36H (double-wall)
Seat: Mid-size padded, railed seat
Seat Post: 25.4mm Alloy 200mm length, micro-adjust
Seat Clamp: Integrated
Front Tire: 22″ Fiction Troop 2.30″
Rear Tire: 22″ Fiction Troop 2.30″
Weight: Approx 27.0lbs
Color: Metallic Red
GEOMETRY
Toptube Length: 22.25"
Chainstay Length: 14.10" (slammed)
Headtube Angle: 74.25°
Seattube Angle: 71°
Standover Height: 9.10″
Bottom Bracket Height: 12.25"
Fork Offset: 28mm
