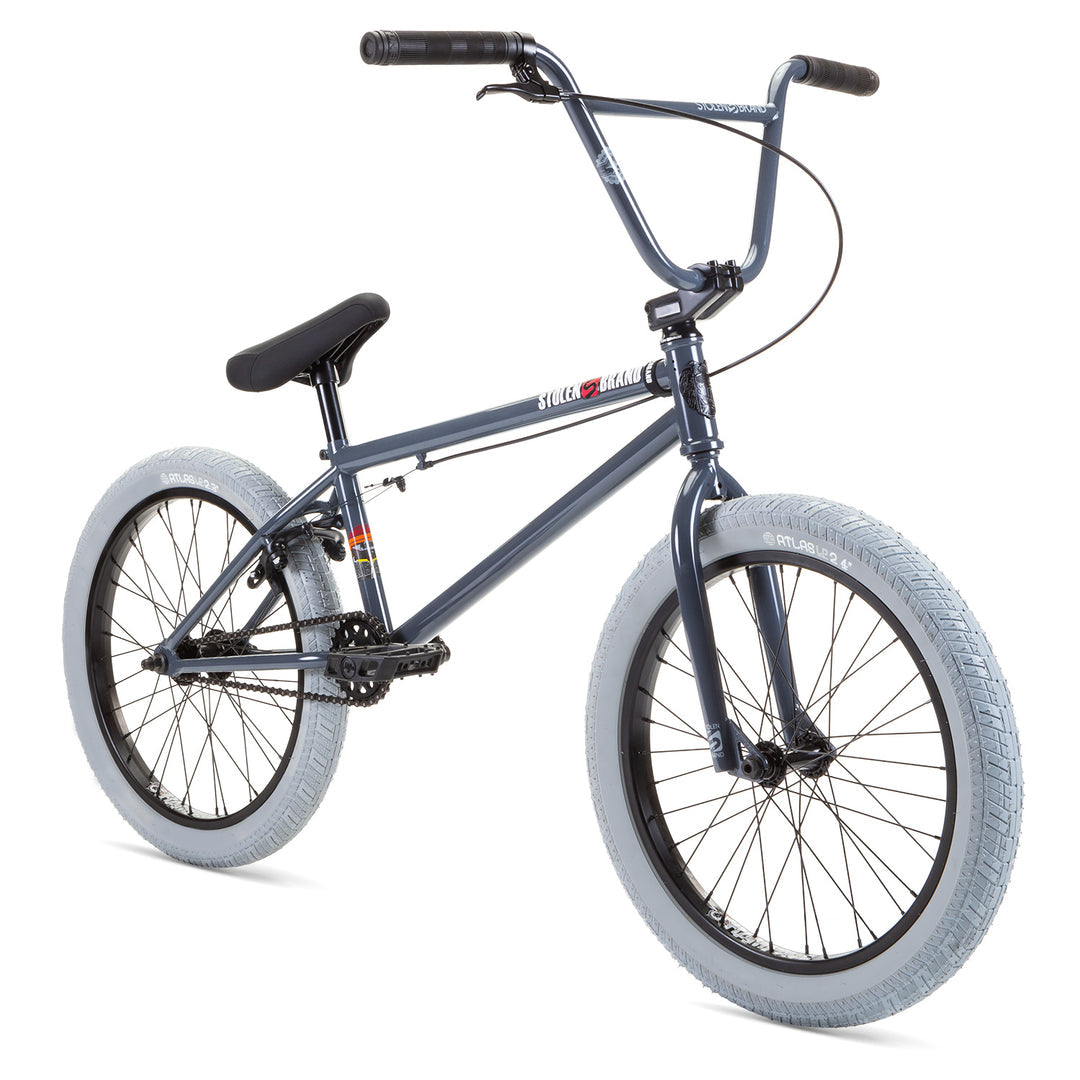

2022 Stolen Heist BMX Bike

DETAILED SPECIFICATIONS

Frame: ChroMoly main tubes, "S-Bend" chainstays for bigger tires, integrated headtube, mid bb shell, top & down tube gussets, drilled for Gyro tabs (tabs not included)
Fork: Tapered 4130 ChroMoly Legs w/ One-piece steerer w/ Compressor top-cap
Bars: 9.25” TallBoy, 2-Piece ChroMoly
Grips: Stolen Team Flangeless, 165mm w/ Stolen Vortex rubber barends

Stem: Fiction Spartan top-load, 52mm reach
Headset: Fiction Savage Sealed Integrated
Brake Lever: APSE Alloy w/ hinged clamp
Brakes: APSE U25 Alloy U-brake
Cranks:  Stolen MOB V3 Tubular 4130 ChroMoly Arms, 8 Spline ChroMoly Spindle, 170mm
Sprocket: Stolen 6061 Alloy, 25T
Bottom Bracket: Fiction Savage MID 19mm

Pedals: Fiction Mythos w/ ChroMoly spindles
Chain: Z-410, Black
Front Hub: Stolen Rampage fully sealed, 3/8″ ChroMoly axle

Rear Hub: Rampage 6061 Alloy fully-sealed cassette w/ 14mm ChroMoly axle
Driver: 9t sealed, one-piece ChroMoly
Front Rim: Stolen Rampage 36H (double-wall)
Rear Rim: Stolen Rampage 36H (double-wall)
Seat: Fiction Brutus combo Seat w/ integrated post
Seat Post: 25.4mm Alloy 200mm length
Seat Clamp: Integrated
Front Tire: Fiction Atlas LP 2.30″
Rear Tire: Fiction Atlas LP 2.30″

Weight: Approx 25.00lbs

Colors: Dark Green w/ Chrome or 2 Shades Of Grey

GEOMETRY

Toptube Length: 21.00"
Chainstay Length: 13.20"
Headtube Angle: 75.0°
Seattube Angle: 71°
Standover Height: 9.25″
Bottom Bracket Height: 11.75"
Fork Offset: 28mm
